15. Data Flow Diagrams (cont)

Extra rules

There are some other sensible rules regarding allowed data flows. For instance, a flow from one external entity to another external entity is not useful when describing this particular system.

Another one is, do not show data flows going directly from one data store into another one - simply combine the data stores if that is the case and call the composite data store something else.

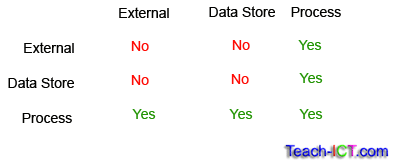

The table below summarises the rules for data flow.

DFD Data Flow Allowed data flows



challenge see if you can find out one extra fact on this topic that we haven't already told you

Click on this link: Creating DFDs
